Solar Fencing For Domestic / Commercial

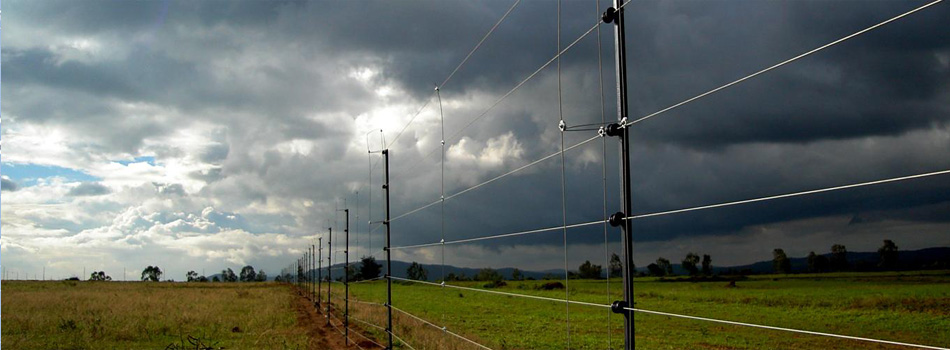

Solar Fencing

1. The Security Power Fence System (SPF) is designed with cyclic wave technology of high voltage deterrent system which would deter, detect, and deny physical intrusion by giving the intruder a shot, sharp and painful but safe shock. The system will check the fence 50 sec or less time a minute. When the Fence wires are cut or tampered with, a built in alarm will immediately alert the monitoring personnel and the security authorities.

2. The SPF will be of 6feet high Security Power Fence on the ground. EXPERIENCE Shauri Solar energy have the team of highly qualified technical experts and the network of local sales and service dealers who offer prompt and professional advice. From initial consultation, system design, installation, commission and service we ensure that each installation meets our customer requirements and expectations with quality and cost effective.

ADVANTAGES OVER CONVENTIONAL FENCES Top

The major advantages of Electric Fences over traditional fences are:

⇨ Fence posts are erected 6 - 8 mts apart depending upon the terrain.

⇨ No barbed wires are used. Only plain High tensile (Strong) wire is used.

⇨ A long life as the fence is not subjected to physical pressures of wear and tear.

⇨ Selective barriers possible. For example, Elephant barriers can be designed to allow smaller animals like cattle to move in and or out.

⇨ It is used in more than 165 countries all over the world.

⇨ It is the most effective method of fencing, and is safe to all kinds of animals and to human beings.

⇨ It is easily constructed and maintained.

⇨ It is long lasting and can be modified, extended, shifted and re-erected from one place to another, without loss of materials and waste of labor.

⇨ This is the only method of fencing, which can effectively keep all kinds of wild animals out.

⇨ It is not dependent on regular electricity supply as it operates on battery.

ADVANTAGES

There are a number of reasons for choosing Solar Electric Fencing:

⇨ Stand alone non-lethal system.
Low cost - electric fences require less materials and labor than conventional fences.

⇨ Easily constructed - with fewer and lighter materials
Long life - due to reduced physical pressure.
Universal application - will contain all types of animals while discouraging predators and trespassers.
Improves existing fences - by including 1 or 2 electrified wires in your conventional fence or by adding offsets this will extend the fence life.
Simplicity and flexibility - a quick and easy way to effectively subdivide a paddock for intensive grazing, improving pasture management and production.

⇨ Low maintenance - due to reduced stock pressure.
Less damage to stock - the shock from an electric fence causes no physical damage to stock and if they are forced through electric fences by wild animals or bush fires there is reduced likelihood of injury.

Description High voltage energizer
Peak level of voltage 10000 volts;
Max. Impulse duration ON time 0.05 sec. OFF time around 1.3 sec No of pulses / min 45
Max. quantity of Electricity per impulse 2.5 m.C
Max. discharge/impulse 4.8 joules
Peak value of current 10 amps
Period for which the Instantaneous value of the output current exceeds 300 mA 1.5 m.s
Battery Charger 12 volts / 72 Ah / Dry Rechargeable Sealed Maintenance free battery. 40 Wp Solar photovoltaic Module & standby battery charger 30-40 Watt output 230V AC operated

The electrical specifications of the energizer will be as follows

It is designed to comply with national and international standards- IEC1011-1&2, IS 8437-1&2. The Energizer and the fence will be capable of integration with other security devices like CCTV, Access Control, Movement Detector, Intruder alarms, Pollution Monitoring System, Security lighting system, fire and smoke detection system etc., to form an Integrated security network.
